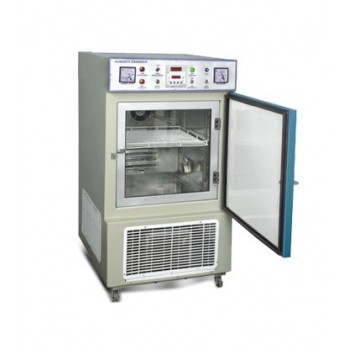

Humidity & Temperature Controlled Cabinet Manufacturer in India
Humidity & Temperature Controlled Cabinet Specification
These humidity and temperature controlled cabinet are best suited for carrying out different control tests under controlled humidity and temperature condition. Also they are designed for conducting various types of research experiments in order to check the quality of different materials such as cement motors, electrical fittings, its circuits and components, types of cloth and paper under controlled temperature and humidity conditions.The cabinet of these Test Chamber Equipment are robustly constructed as the outer body is made up of mild steel sheet duly power coated and the inner chamber is made up of stainless steel. The equipment is also provided with castor wheels for easy mobility. However, they are highly reliable and versatile as well.
working chamber
|
Inner Dimension (mm) |
Volume (liter) |
|
455X455X710 mm |
147 |
|
605X605X605 mm |
225 |
|
605X605X910 mm |
335 |
Humidity & Temperature Controlled Cabinet
Model No :
Technical Matrix
| Temperature Range | Ambient+5 to 60 degree C / 5 to 60oC |
| Temperature Accuracy | + 1oC or better |
| Temperature uniformity | + 1oC or better |
| Temperature Control | Microprocessor based PID Controller |
| Audio Visual Alarm | Visual and Acoustic |
| Temperature Sensor | PT 100 |
| Display | LED / LCD |
| Humidity Range | 30% to 95% Relative Humidity (As per graph) |
| Humidity Accuracy | + 3% Relative humidity |
| Humidity Sensor | Capacitive |
| Water Reservoir | 22 ltrs |
| Inner wall of chamber | Stainless steel SS 304 |
| Outer wall of chamber | Powder coated cold rolled sheet |
| Door | Inner SS 304 & Outer MS |
| Shelves (Wire Mesh) | Stainless steel |
| Air Circulation Fan | Inbuilt |
| Inspection Window | Inbuilt |
| Insulation | Glass Wool / PUF |
| Compressor | Single Stage |
| Cooling | CFC free |
| Refrigerant | R 404a |
| Castors | Lockable |
| Computer Interface (RS 232) | Optional |
| Power Supply | 220-230V, Single Phase |
