Entomological Chamber manufacturer in India to Store Insects in Controllable Environment
Entomological Chamber Specification
Entomological chamber are equipment which can be used to study and store bees, mosquitos, and other types of insects within a controllable environment. These are also supplied with illuminated shelves and are fitted with the banks of high frequency lightning, minimizing the effects of stroboscopic stress on insects. All these Test Chambers are compact, ozone friendly, and are high energy efficient. They are manufactured and supplied in the market by OBROMAX, a twenty five year old company in the market and are ISO 9001:2008, ISO 13845:2016,CE,GMP certified.working chamber
|
Capacity |
Volume |
|
10 Cu. Ft |
280 liters |
|
12 Cu. Ft |
336 liters |
|
20 Cu. Ft |
560 liters |
|
30 Cu. Ft |
840 liters |

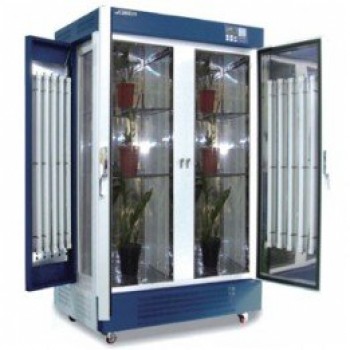

Entomological Chamber
Model No : ATI-197
Technical Matrix
| Temperature Range | 5oC to 70oC |
| Temperature Accuracy | + 1oC or better |
| Temperature uniformity | + 1oC or better |
| Temperature Control | Microprocessor based PID Controller |
| Audio Visual Alarm | Visual and Acoustic |
| Temperature Sensor | PT 100 |
| Display | LED / LCD |
| Humidity Range | 20% to 98% Relative Humidity |
| Humidity Accuracy | + 3% Relative humidity |
| Humidity sensor | Capacitive |
| Water Reservoir | 22 ltrs |
| Inner wall of chamber | Stainless steel SS 304 |
| Outer wall of chamber | Powder coated cold rolled sheet |
| Door | Inner SS 304 & Outer MS |
| Shelves (Wire Mesh) | Stainless steel |
| Air Circulation Fan | Inbuilt |
| Insulation | PUF |
| Compressor | Single Stage |
| Cooling | CFC free |
| Refrigerant | R 404a |
| Castors | Lockable |
| Computer Interface (RS 232) | Optional |
| Power Supply | 220-230V, Single Phase |
