Biomedical Waste Sterilizer Specification
Biomedical waste steriliser are Sterilization Equipment that are designed for the on site conversion of biological infectious waste in the hospitals and clinics. All these machines are eco friendly and are extremely cost effective. In addition, the waste steriliser’s give a reliable performance and are compact when it comes to the design of the same. The entire process for operating the same is totally automatic and hassle free. Waste Sterilisersare manufactured and supplied in the market by OBROMAX, a twenty five year old company in the market and are ISO 9001:2008, ISO 13845:2016,CE,GMP certified.working chamberWorking Chamber Cylindrical Model
Working Chamber Rectangular Model
|
Dia mm X Depth mm |
Volume(Ltr) |
|
400 mm X 600 mm |
78 |
|
500 mm X 900 mm |
135 |
|
550 mm X 750 mm |
152 |
|
400 mm X 1100 mm |
162 |
|
500 mm X 1200 mm |
185 |
|
600 mm X 1200 mm |
300 |
|
750 mm X 1200 mm |
525 |
Working Chamber Rectangular Model
|
W x D x H (mm) |
Capacity |
|
450 X 450 X 900 |
191 Ltr |
|
600 x 600 x 900 |
335 Ltr |
|
600 x 900 x 1200 |
450 Ltr |
|
600 x 900 x 1500 |
850 Ltr |

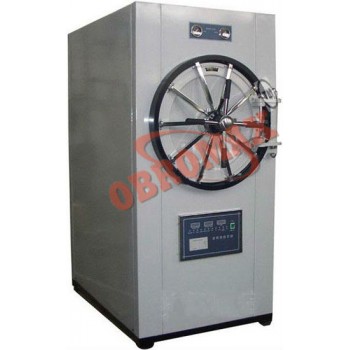

Biomedical Waste Sterilizer
Model No : ATI-204
Technical Matrix
| Model No. | ATI-204 |
| Type | Horizontal / Cylindrical |
| Radial Locking System | Mild Steel |
| Construction | Made of stainless steel SS 304 |
| Digital Display | LED/LCD |
| Provided with | Safety valves, pressure vacuum gauge, digital temperature, steam air outlet |
| Boiler | Inbuilt or external |
| Purging System | Steam Trap / Through Controller |
| Temperature | 134oC |
| Pressure | 30 psi |
| Insulation | 75 mm |
| Gasket | Made of Silicon |
| Heating Elements | ISI Mark |
| Power Supply | Power Supply: 415V, Three Phase |
