Industrial Drying Oven Manufacturer in India for sterilizing glassware
Industrial Tray Dryers Specification
Industrial Tray Dryers are used in variety of industries and laboratories for applications such as drying and sterilizing glassware. These processes require controlled heating and temperature uniformity such as bonding and curing. Also, these ovens are useful in heating the material to a desired temperature within a specific time.These drying ovens are produced under Ovens n Incubators are produced with triple walled construction and the inner chamber is made up of steel which is further painted and finished. The front panel of the equipment is provided with on/off switch and there are temperature controllers and indicators fitted inside the same. Also they are supplied with other accessories such as trays and trolleys as well.

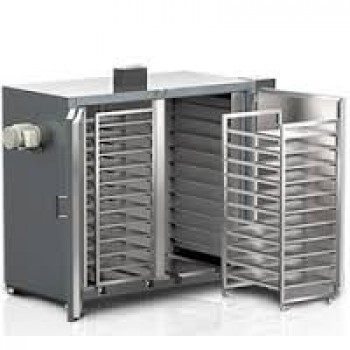

Industrial Drying Oven/Tray Dryer
Model No : ATI-112
Technical Matrix:
| Construction | Inner | SS-304 |
| Outer | Powder Coated MS | |
| Door | Inner SS-304 and Outer MS | |
| Temperature | Range | Ambient + 5 to 350 degree C |
| Deviation | + 1 degree C or better | |
| Readability | + 1 degree C or better | |
| Controller | PID controller | |
| Sensor | J type | |
| Display | LED / LCD | |
| Adjustable alarm limits | Visual and acoustic | |
| Glass Wool Insulation | 75 mm | |
| Air Circulation Fan | Inbuilt | |
| Heating Elements | ISI Marked | |
| Wire Mesh Shelves | 8/12/24/48/96 (depends on the working chamber size) | |
| Timer 1-999 hours | Optional | |
| Serial Data Port | Optional | |
| Power consumption | 230 V, 50 Hz | |
