Bacteriological Incubator manufacturer in India used for Crystallization
Bacteriological Incubators Specification
Bacteriological Incubators are primarily used in drying of slides, tissue culture, crystallization and microbiological incubation. All these ovens n incubators are produced with double walled construction and the inner chamber is made up of stainless steel. The shelves of these equipment's are also made up of stainless steel and are adjustable to set a certain height. The heater incorporated in the device has a high grade imported nichrome wire inserted and this wire is placed at the bottom for uniform temperature all over the space. The LED based smart controller in the equipment is used to control temperature and LED based display is provided with an audio-visual alarm as well.working chamber
| Dimensions (LxBxH) | Volume (Ltr) |
| 300 X 300 X300 mm | 28 |
| 355 x 355 x 355 mm | 45 |
| 455 x 455 x 455 mm | 95 |
| 455 x 455 x 605 mm | 125 |
| 605 x 605 x 605 mm | 224 |
| 605 x 455 x 910 mm | 252 |
| 605 x 605 x 910 mm | 336 |

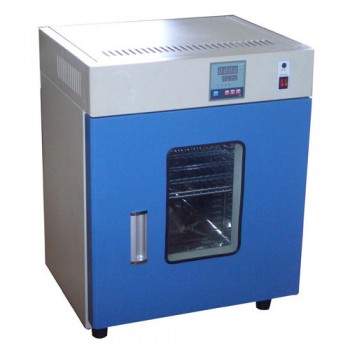

Bacteriological Incubator
Model No : ATI-117
Technical Matrix:
| Construction | Inner | SS-304 |
| Outer | Powder coated MS | |
| Door | Inner SS-304 and outer MS | |
| Temperature | Range | Ambient + 5 to 60 degree C |
| Deviation | + 1 degree C or better | |
| Readability | + 1 degree C or better | |
| Controller | PID controller | |
| Sensor | J type | |
| Display | LED / LCD | |
| Adjustable alarm limits | Visual and acoustic | |
| Glass Wool Insulation | 75 mm | |
| Air Circulation Fan | Inbuilt | |
| Heating Elements | ISI Marked | |
| Inspection Window in door | Inbuilt | |
| Wire Mesh Shelves | 1/2/3 (depends on the working chamber size) | |
| Timer 1-999 hours | Optional | |
| Serial Data Port | Optional | |
| Power consumption | 230 V, 50 Hz | |
