High Temperature Muffle Furnace manufacturer in India
High temperature Muffle Furnace Specification
High temperature Muffle Furnace is mainly used in general purpose of heating in laboratories, ashing tests on wool, rubbers, fabrics or fibres and for conducting various research in the areas of science. These Muffle Furnace can be customized as per the requirement of the customer. In addition, they are made with outer casing using manufactured with mild steel sheet duly painted and has a power coated finish.Further, the temperature control unit of the product has a digital temperature indicator and energy regulator, which is fitted in furnace's front side with the help of two pilot lamps with a power plug provision that is suitable for achieving optimum functional operations.
working chamber
| Size Inside Chamber (LXWXH) | Load |
| 100 X 100 X 150 mm | 4 kW |
| 150 X 150 X 200 mm | 5 kW |
| 200 X 200 X 300 mm | 10 kW |
| 300 x 300 x 450 mm | 20 kW |

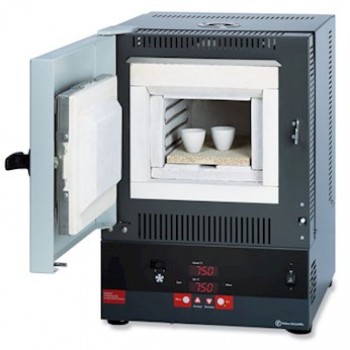

High Temperature Muffle Furnace
Model No : ATI-119-A
Technical Matrix
| Temperature | Working 1500oC & Maximum 1600oC |
| Controller | Microprocessor based PID Controller |
| Accuracy | ±1oC |
| Display | LED / LCD |
| Sensor | B Type |
| Atmosphere Options | Air, Inert |
| Inner Chamber | Ceramic Wool |
| Outer Chamber | Mild Steel duly power coated |
| Power Supply | 415V, Three Phase, 50/60 Hz |
